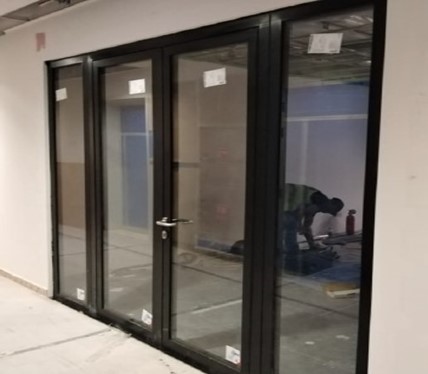

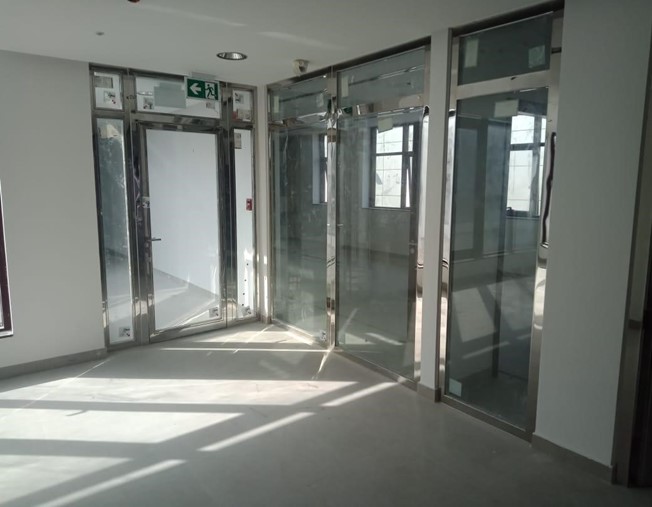

Fully Glazed Doorset With Side Light And Transom Panels (E And Ew)
Alternative to steel doors, special designed fully glazed fire rated and non-fire rated glazed doors with side and top panels for traditional store front and entrance system, Narrow stiles and rails with standard and concealed hardware for good aesthetic view, increased glazed area with slimmer profile
Specifications
| Item | Description |
|---|---|
| Construction | Mechanically formed special narrow profile |
| Materials | Cold rolled galvanized steel sheet confirm to ASTM or equivalent standard |
| Gauge/Door Thickness | 60 mm thick door with skin thickness 1.2 to 1.8 mm |
| Size | 3000x 3000mm (wxh) and no limitation in width |
| Core Or Insulation | Fully glazed- No core |
| Glass | Fire rated glass |
| Application | Light to extra heavy duty use as per SDI |
| Frame Profiles | Mechanically formed special narrow profile |
| Ironmongery | Tested and Certified as per door test standard BS and EN |
| Fire Rating | E 180 minutes - EW 120 Minutes |
| Test Standard | EN 1634-1/ BS 476 part20-22 |
| Certification | Intertek, BM trada, Exova Warrington |
| Finish | Powder coated/ Wood finish/ Wet paint meets ANSI A 250.3 and ANSI A 250.10 |
Additional Features
- Alternate Stainless-steel materials
- No limitation in width height can be replicated by a separator
- Side lite and transom lite is separated with mullion and transom
- Alternate glass specification
- Smoke rated as per UL1784 / BS476 section 31.1/BSEN 1634-3
- Acoustical
